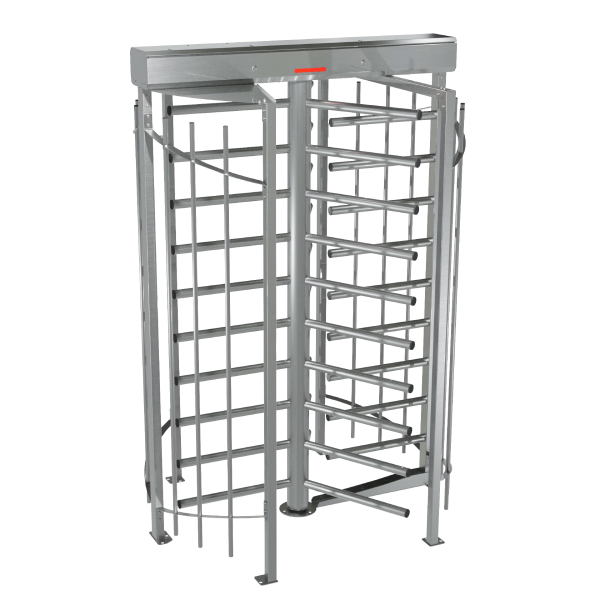

Sesame-S is a one-lane type of full height turnstile gate. It ensures vandal proof security level to large variety of possible applications: stadiums, factories, parks, premises with highest security requirements etc. Strenght and durability is granted by robust fully welded design. On ther other hand, attractive for shipment assembly modification of automatic barrier gate is also available.

  • Highest security level, which can make stricter force control than other type of turnstiles
  •  Can be supplied as fully welded or in disassembled condition which has perfect effect to transportation cost
  • Low noise system operation
  • Successful combination of affordable price and high quality
  • Steadfast housing suitable for high traffic areas
  • The ability to customize housing design and top lid
  • Low power consumption
  • Can be integrated with any type of access control systems
  • Wired remote control panel in standard kit
  • In case of power failure, rotor locked in both direcons (fail secure)
UGS : SESAME-S Catégories : , ,

Sesame-S X-rotor Sesame-S Y-rotor
Crossing capasity, person/min 20
Unit dimensions (WxLxH), mm

X type – 1420x1285x2155

Y type – 1420x1170x2155

X type – 1420x1285x2155

Y type – 1420x1170x2155

Passage width, mm X type – 515

Y type – 615

Mechanism SafeLock-EM
Blocking system Two electromechanical stop catches
Available housing

Brushed SS AISI 316

Polished SS AISI 304

Polished SS AISI 316

Powder coated RAL

Voltage

 from the AC (100–240) V, 50/60 Hz

from a DC source 12 V

Maximum power consumption, W

160

MCBF, cycles 5 000 000



Fiche Technique
